Home / Electrical Box, Switch, 3x2x2-3/4 in.

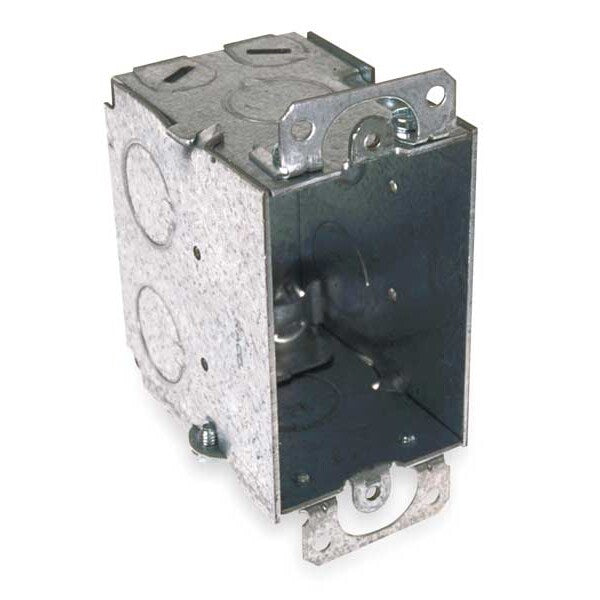

Electrical Box, Switch, 3x2x2-3/4 in.

SKU
Brand Raco
Categories Electric and Cordless Tools
Description Electrical Box, Box Type Switch, Number of Gangs 1, Bracket Type Ears, Capacity 14 cu in, Material Galvanized Zinc, Number of 1/2 In. Back Knockouts 1, Number of 1/2 In. Side Knockouts 4, Clamp Type NM-B, Nominal Depth 2 3/4 in, Nominal Length 3 in, Nominal Width 2 in, Color Silver, Standards UL File E195978
graingerSKU: 3KF64, mscSKU: , zoro_no: G2107305, mongo_id: 65bbe8729a749db822790627

Web Price

$6.69 / each

Qty

Product Details

Actual Depth 3.086 in

Box Type Switch

Bracket Type Ears

Capacity 14.0 cu. in.

Certified Listed UL Listed

Clamp Type NM-B

Color Silver

Country of Origin (subject to change) Mexico

Cubic Capacity 14.0 cu.in

Depth 2.75 in

Each - Width 2.000 in

Ends Cable 4

Features 3 in. x 2 in., 2-3/4 in. deep; Gangable switch boxes offer the option of constructing a box to hold two or more devices; Cable clamps suitable for use with nonmetallic sheathed cable; Supplied with seven 1/2 in. knockouts; Plaster ears allow a box to be used in old work applications; 14.0 cu. in. capacity; Acceptable for use in 2-hour fire rated walls

Fire Resistance Yes

Gangable Yes

Height 4.197 in

Knockouts 1/2 in

Material Galvanized Zinc

Nominal Depth 2-3/4

Nominal Length 3

Nominal Width 2

Number of 1/2 In. Back Knockouts 1

Number of 1/2 In. Side Knockouts 4

Number of Gang 1-Gang

Number of Gang(s) 1-Gang
