Home / Electrical Box, Switch, 3x2x2.25 in.

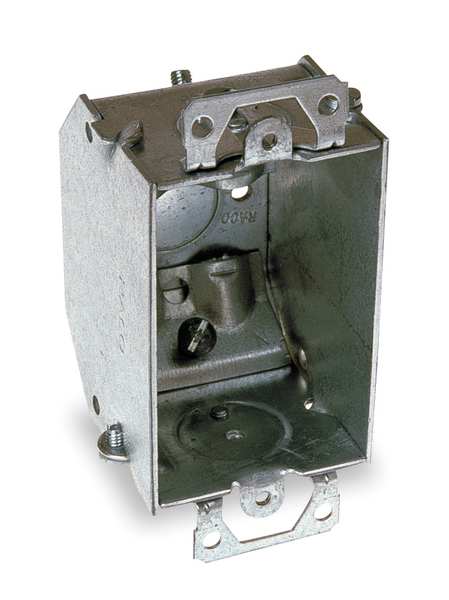

Electrical Box, Switch, 3x2x2.25 in.

SKU
Brand Raco
Categories Electric and Cordless Tools
Description Electrical Box, Box Type Switch, Number of Gangs 1, Bracket Type Ears, Capacity 10.5 cu in, Material Galvanized Zinc, Number of 1/2 In. Back Knockouts 1, Number of 1/2 In. Side Knockouts 0, Clamp Type NM-B, Nominal Depth 2 1/4 in, Nominal Length 3 in, Nominal Width 2 in, Color Silver, Standards UL File E195978
graingerSKU: 1XC35, mscSKU: , zoro_no: G0998523, mongo_id: 65bbe79a9a749db822748900

Web Price

$5.86 / each

Qty

Product Details

Box Type Switch

Bracket Type Ears

Capacity 10.5 cu. in.

Certified Listed UL Listed

Clamp Type NM-B

Color Silver

Country of Origin (subject to change) Mexico

Cubic Capacity 10.5 cu.in

Depth 2.25 in

Each - Width 2.000 in

Ends Cable 4

Features 3 in. x 2 in., 2-1/4 in. deep; Gangable switch boxes offer the option of constructing a box to hold two or more devices; Beveled corner boxes are designed to prevent the clamp screws from protruding into back wall; L clamps provided for non-metallic sheathed cable (NMSC); Supplied with one 1/2 in. knockout; Plaster ears allow a box to be used in old work applications; 10.5 cu. in. capacity; Acceptable for use in 2-hour fire rated walls

Fire Resistance Yes

Gangable Yes

Height 4.219 in

Knockouts 1/2 in

Material Galvanized Zinc

Nominal Depth 2-1/4

Nominal Length 3

Nominal Width 2

Number of 1/2 In. Back Knockouts 1

Number of 1/2 In. Side Knockouts 0

Number of Gang 1-Gang

Number of Gang(s) 1-Gang
