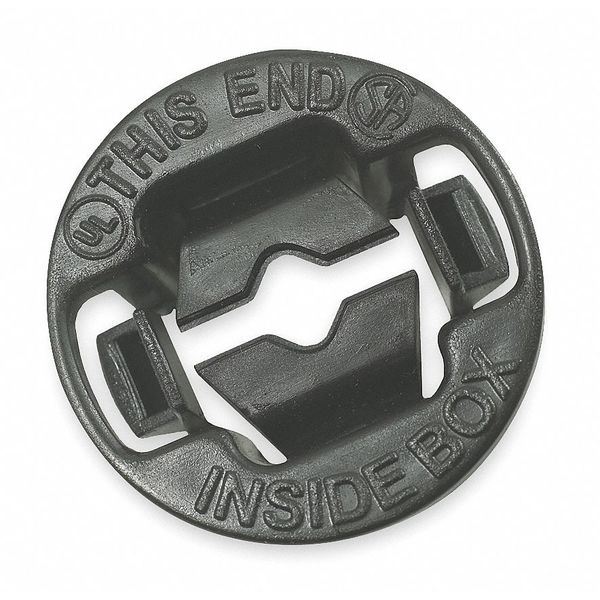

Non-Metallic Sheath Cable Connector, Push-In, Insulated, Thermoplastic, 1/2 in Size, 5/8 in L, Black

SKU
Brand Raco
Categories
Description Plastic Connector, Snap-In, Box Connection 1/2 in NPT, For Use With 10/2, 10/3 with ground, 12/2, 12/3, 14/2, 14/3, Insulated Yes, Thermoplastic, Standards CUL, UL Listed File E195971, Cable Clamping Method (2) Plastic Pawls, Color Black, Connection Orientation Straight, Connection Type Push-In, Connector Style Straight, For Maximum Cable OD 2.59 mm, For Minimum Cable OD 1.63 mm, Overall Height 1 1/8 in, Overall Length 5/8 in, Overall Width 1 1/8 in, Resistance Properties Corrosion Resistant
graingerSKU: 1RVZ1, mscSKU: , zoro_no: G1819894, mongo_id: 65bbee31526e052139af6ad8

Web Price

$3.31 / each

Qty

Product Details

Accessory Type Fitting

Box Connection 1/2 in NPT

Cable Clamping Method Snap-In Style

Certified Listed cULus Listed

Color Black

Compatible Knockout Trade Size 1/2 in

Conduit Size 1/2

Conduit Type Nonmetallic Sheathed Cable (NMSC)

Connection Orientation Straight

Connection Type Push-In

Connector Style Straight

Connector Type THE INSIDER

Country of Origin (subject to change) United States

Description/Special Features Connects Nonmetallic Sheathed Cable To A Box

Dimensions 0.625 in x 1.14 in x 1.14 in

Features Installs from inside the box: The unique design allows the installer to run the NMSC through the knockout to the desired length before snapping the connector into the knockout. No more need to cut an oversized hole for an old work box and connector installation; UL listed for use with eccentric knockouts: THE INSIDER is the only NMSC Connector that has been U.L. tested for use with an eccentric knockout. No need to worry about the unused knockout pulling out; Accepts single and dual runs of NMSC: THE INSIDER can accommodate one of the widest ranges of NMSC combinations in the industry. There's no need to stock anotherconnector; Snap-in design for ÃÂ½ knockouts: THE INSIDER locks into the removed knockout securely.No need to waste time with installing locknuts; One piece nonmetallic construction: THE INSIDER resists corrosion and offers insulation protection. THE INSIDER is made of a tough engineered thermoplastic and conforms to the requirements of UL514B, UL514C and CSA. THE INSIDER can be used in exposed and concealed ceilings and walls; Easy removal: If you make a mistake, THE INSIDER can be removed easily by pushing one of the locking wing tabs with a screwdriver.; Accepts UL Listed Voltage Partition - Cat. No. 981; 1/2 in. trade size: NMSC wire - 14/2, 14/3, 12/2, 12/3, 10/2, 10/3 with ground

Fitting Sub-Category Straight Connectors

Fitting Type Connectors

For Maximum Cable OD 2.59 mm

For Minimum Cable OD 1.63 mm

For Use With 10/2, 10/3 with ground, 12/2, 12/3, 14/2, 14/3

Height 1.14 in

Insulated Yes

Item - Building Cable Connector Nonmetallic Sheath Cable Connector

Knockout Size 1/2

Length 0.625 in

Material Thermoplastic

Material - Cable Connector Thermoplastic

Overall Height 1 1/8 in

Overall Length 5/8 in

Overall Width 1 1/8 in

Package Quantity 1

Resistance Properties Corrosion Resistant

Standards CUL, UL Listed File E195971

Style - Connector Straight

Trade Size 1/2 in

Use With - Nonmetallic Building Cable (1) 10/2, (1) 10/3 with Ground; (2) 14/2, (1) 12/2, (1) 12/3, (1) 14/3, (2) 12/2 with Ground; (1) 14/2 and (1) 12/2 With Ground; (1) 12/2 and (1) 10/2 with Ground; (1)14/2 and (1) 10-2 with Ground, Oval Cable: (1) 14/2

Width 1.14 in
