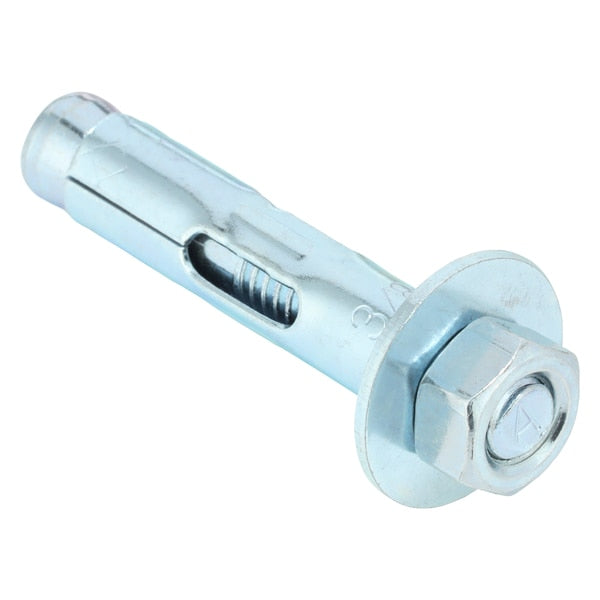

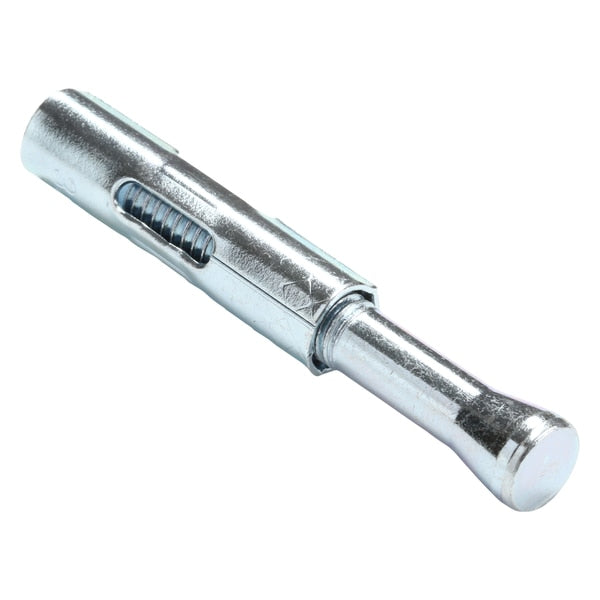

Home / Dynabolt Sleeve Anchor, 3/8" Dia., 1-7/8" L, Carbon Steel Zinc Plated, 50 PK
Dynabolt Sleeve Anchor, 3/8
Dynabolt Sleeve Anchor, 3/8
Dynabolt Sleeve Anchor, 3/8
Dynabolt Sleeve Anchor, 3/8

Dynabolt Sleeve Anchor, 3/8" Dia., 1-7/8" L, Carbon Steel Zinc Plated, 50 PK

  • Red Head
  • Raw Materials
  • Sleeve Anchor, System of Measurement Inch, Anchor Diameter 3/8 in, Overall Length 1 7/8 in, Thread Size 5/16 In.-18, Drive Type External Hex, Head Type Hex, Material Steel, Finish Zinc Plated, Drill Bit Size 3/8 in, Compatible Material Block, Brick, Concrete, Minimum Installation Torque 14 ft-lb, Maximum Installation Torque 14 ft-lb, Minimum Installation Depth 1 1/2 in, Maximum Material Thickness 3/8 in, Maximum Ultimate Shear Strength 3,040 lb, Maximum Ultimate Tension Strength 3,100 lb

    graingerSKU: 3A474, mscSKU: 85651107, zoro_no: G0530126, mongo_id: 65bbe88a9a749db822799407

Web Price
$40.36 / each
Qty

Product Details

3/8
1 7/8 in
Concrete; Hollow Block; Brick
China
3/8
Hex
Zinc Plated
Hex Nut
No
Yes
A-A-1923A
Carbon Steel
3/8 in
3/8
1 1/2 in
1-1/2
1-7/8
50
Dynabolt
5/16-18
