Home / Trubolt Wedge Anchor, 1/4" Dia., 2-1/4" L, Carbon Steel Zinc Plated, 100 PK
Trubolt Wedge Anchor, 1/4
Trubolt Wedge Anchor, 1/4

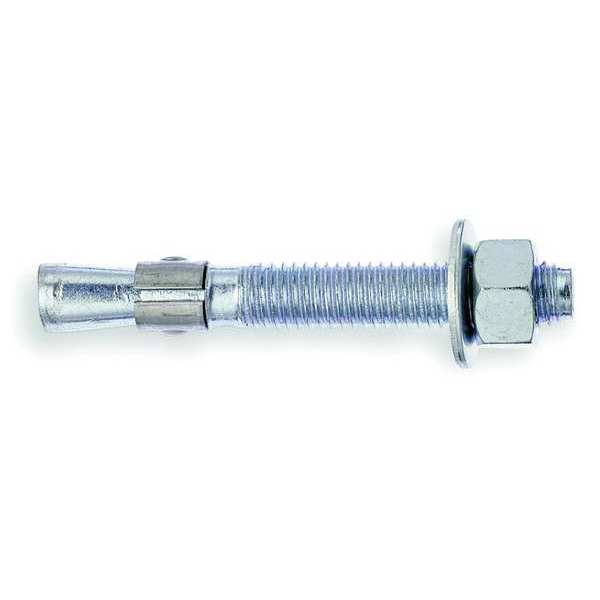

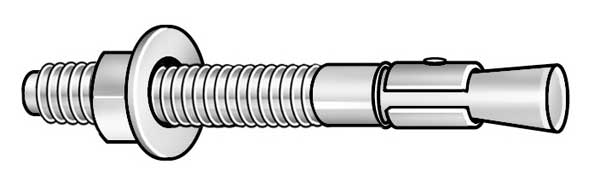

Trubolt Wedge Anchor, 1/4" Dia., 2-1/4" L, Carbon Steel Zinc Plated, 100 PK

  • Red Head
  • Raw Materials
  • Wedge Anchor, System of Measurement Inch, Anchor Diameter 1/4 in, Thread Size 1/4 In.-20, Overall Length 2 1/4 in, Thread Length 1 1/4 in, Material Steel, Material Grade/Class Not Graded, Finish Zinc Plated, Compatible Material Concrete, Drill Bit Size 1/4 in, Minimum Installation Depth 1 1/2 in, Minimum Material Thickness 4 in, Ultimate Shear Strength (4,000 psi Concrete) 1,400 lb, Ultimate Tension Strength (4,000 psi Concrete) 1,780 lb, Wedge Anchor Type Wedge Anchor, Seismic Approved No

    graingerSKU: 3A443, mscSKU: 64951205, zoro_no: G1484147, mongo_id: 65bbe8069a749db82276e152

Web Price
$58.74 / each
Qty

Product Details

1/4
Concrete
United States
1 15/16 in
Zinc Plated
No
Nuts and Washers
A-A-1923A Type 4
Carbon Steel
Not Graded
7/8
1-1/8
2-1/4
100
No
Trubolt
Fully Threaded
1 1/4 in
1/4-20
3,300 lb
1,680 lb
