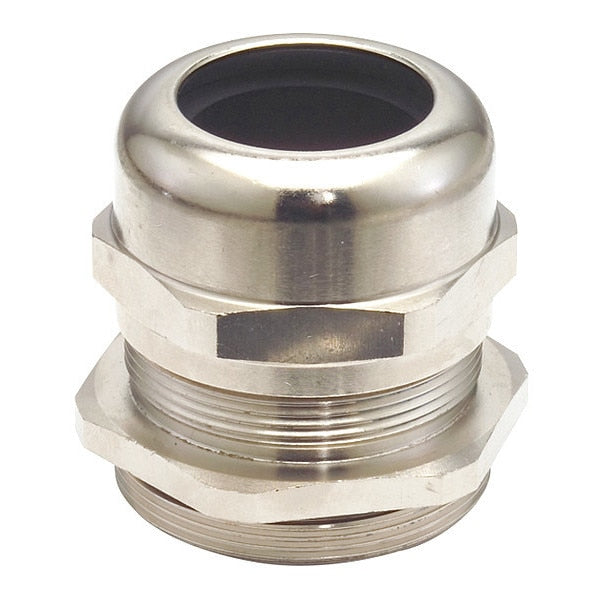

Cord Grip, Ni Plated Brass, PG11, .20-.39

Home / Cord Grip, Ni Plated Brass, PG11, .20-.39

Cord Grip, Ni Plated Brass, PG11, .20-.39

SKU
Brand Remke
Categories Raw Materials
Description Cord Grip,Ni Plated Brass,PG11,.20-.39

Web Price

$5.32 / each

Qty

Product Details

A Dimension (in) 0.75

B Dimension (in) 0.24

Body Material Nickel-Plated Brass

Bushing Holes 1

Bushing Material Neoprene

C Dimension (in) 0.79

Cable Range .20 - .39

Clearance Hole (in) 0.766

Connector Material Nickel-Plated Brass

Cord Grip Type Straight

Country of Origin (subject to change) Turkey

Inside Body Diameter / Body Bore 0.531

IP Rating IP68

Max Cable Range over Jacket (in) 0.39

Maximum Knock Out Size (in) 0.766

Maximum Operating Temperature (C) 100

Maximum Operating Temperature (F) 212

Min Cable Range over Jacket (in) 0.2

Minimum Operating Temperature (C) -20

Minimum Operating Temperature (F) -4

Package Quantity 1

Plating Color Natural

Plating Type Nickel

Thread Size PG11

Thread type PG

UL Specification E199260
