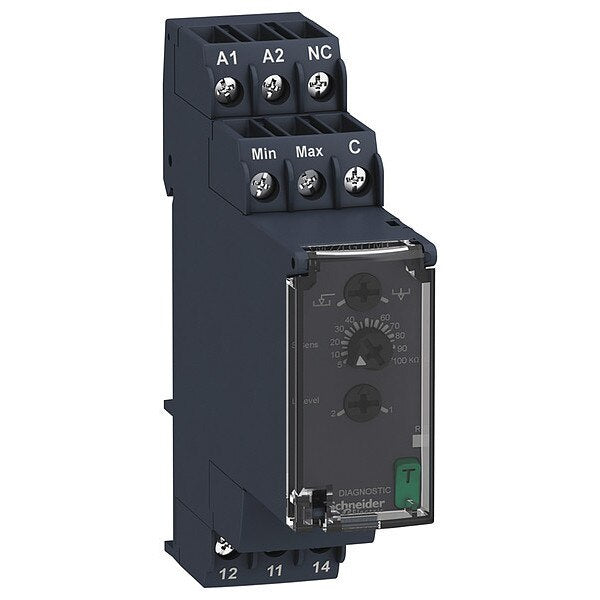

LvlControlRelay, DualProbe, 8A, PumpUp/Down

Home / LvlControlRelay, DualProbe, 8A, PumpUp/Down

LvlControlRelay, DualProbe, 8A, PumpUp/Down

SKU
Brand Schneider Electric
Categories Pumps
Description Level Control Relay, Base Shape Not Applicable, Contact Form SPDT, Current Rating 8 A, Electrical Connection Screw Terminals, Flat Pin Width Not Applicable, Input Voltage 380 to 415V AC, Minimum Resistance Sensitivity 5,000 ohm, Maximum Resistance Sensitivity 100,000 ohm, Number of Pins 2, Number of Probes Dual Probe, Relay Function Pump Down, Pump Up, Mounting Style DIN Rail, Status Indicator LED Indicator, Body Depth 3.15 in, Body Height 3.65 in, Body Width 0.89 in
graingerSKU: , mscSKU: , zoro_no: G3605848, mongo_id: 65bbe98f22d7a989a99612c6

Web Price

$113.94 / each

Qty

Product Details

Agency Compliance CCC, CE, China RoHS, CSA, EAC, EN/IEC 60255-1, GL, RCM, UL

Application Spring, Town, Industrial, And Sea Water, Metallic Salt, Acid, Or Base Solutions, Liquid Fertilizers, Non-Concentrated Alcohol ( Less Than 40%), Liquids In The Food Processing Industry: Beer, Coffee

Base Shape Not Applicable

Body Depth 3.15 in

Body Height 3.65 in

Body Width 0.89 in

Coil Voltage 24 to 240V AC/DC

Contact Form SPDT

Control Type One or Two Liquid Levels With Fill or Empty Function

Country of Origin (subject to change) Indonesia

Current Rating 8 A

Electrical Connection Screw Terminals

Electrical Connection Type Screw

Enclosure Color Power ON LED green, Relay ON LED yellow

Enclosure Depth (In.) 3 3/20 in

Enclosure Height (In.) 3 13/20 in

Enclosure Width (In.) 89/100 in

Features Sealable Cover

Flat Pin Width Not Applicable

Input Voltage 380 to 415V AC

Maximum Resistance Sensitivity 100,000 ohm

Minimum Resistance Sensitivity 5,000 ohm

Mounting Style DIN Rail

Number of Pins 2

Number of Probes Dual Probe

Number of Switches 2

Operating Range - 15 % + 10 % Un

Package Quantity 1

Relay Function Pump Down, Pump Up

Relay Mounting Style DIN-Rail

Socket Code Configurator DIN-Rail / 2

Special Features A control status indicator LED, A dial pointer LED indicator for relay power ON status, A relay output status LED , A sealable cover to help protect the settings, The relays are designed for clip-on mounting on a 5 rail

Special Information The relays are designed for clip-on mounting

Standards CCC, CE, China RoHS, CSA, EAC, EN/IEC 60255-1, GL, RCM, UL

Status Indicator LED Indicator

Switch Type SPDT

Type Modular measurement and control relays

Wiring Conductors Screw terminal
