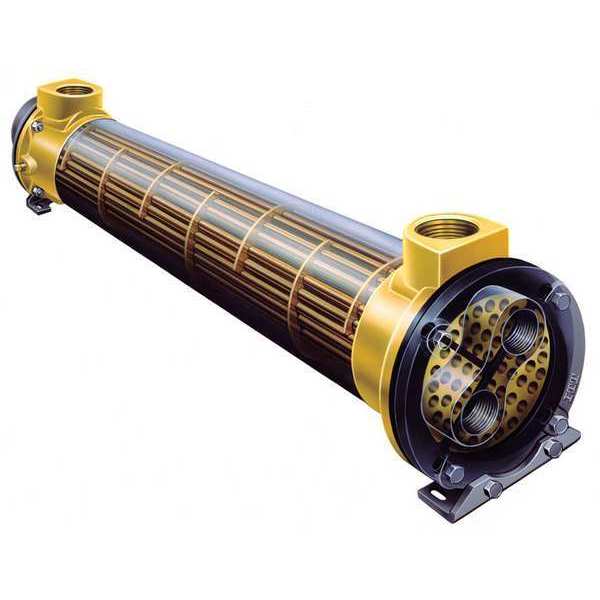

Heat Exchanger, 2,400,000 BTU, Brass

Heat Exchanger, 2,400,000 BTU, Brass

  • Standard Xchange
  • Raw Materials
  • Heat Exchanger, Heat Dissipation Capacity for Water 2,400,000 BtuH, Heat Dissipation Capacity for Oil 280,000 BtuH, Total Surface Area 41 sq ft, Shell Outside Diameter 8 1/8 in, Tube Length 30 5/8 in, Shell Material Brass, Tube Material Copper, Number of Passes 4, Shell Maximum Pressure Rating 300 psig, Shell Maximum Operating Temperature 300 Degrees F, Tube Maximum Pressure Rating 150 psig, Tube Maximum Operating Temperature 300 Degrees F, Fluid Compatibility Glycol, Oil, Steam, Water
Web Price
$6,476.24 / each
Qty

Product Details

Oil to Water Applications
Tube 105, Shell 140
Shell 3 in NPT, Tube 2 in NPT
Brass
United States
280,000 BtuH
2,400,000 BtuH
Straight Tube
11 in
30.625 in
280,000 BtuH
2,400,000 BtuH
4
11 in
10 1/2 in
1
Shell 300 psig, Tube 150 psig
140 gpm
Brass
300 Degrees F
300 psig
8 1/8 in
3 in
NPT
41 sq ft
300
41 sq ft
105 gpm
30 5/8 in
Copper
300 Degrees F
150 psig
2 in
Shell and Tube
150 lb
10.5 in
