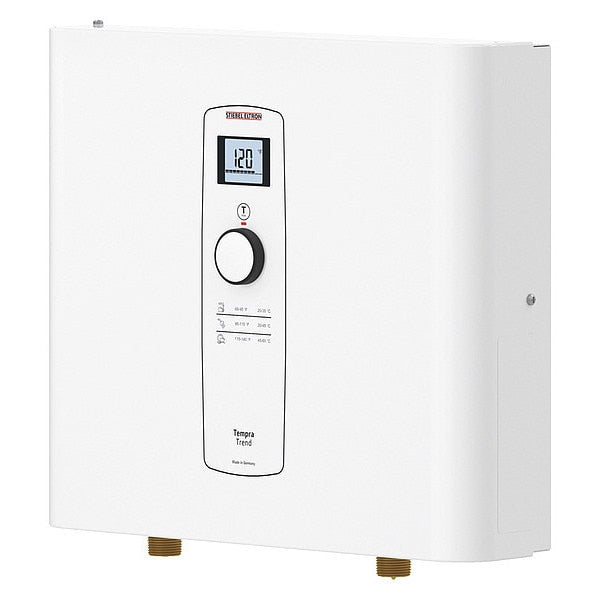

Electric Tankless Water Heater, 1 gpm

SKU
Brand Stiebel Eltron
Categories Electric and Cordless Tools
Description Electric Tankless Water Heater, Operating Voltage 208/240V AC, Phase Single, Cold Inlet Size 3/4 in, Maximum Flow Rate 1 gpm, Minimum Flow Activation 0.77 gpm, Overall Depth 4.63 in, Overall Height 14.5 in, Overall Width 16.63 in, Power Consumption 28,800 W, Maximum Delivered Temperature 140 Degrees F, Minimum Delivered Temperature 70 Degrees F, Adjustable Thermostat Yes, Current 35 A, 40 A, Environment Indoor, Market Commercial, Residential, Cord Conductor Gauge 8/2 AWG Wire
graingerSKU: 491G37, mscSKU: , zoro_no: G9143539, mongo_id: 65bbee36526e052139af87bd

Web Price

$841.24 / each

Qty

Product Details

Adjustable Thermostat Yes

Amps - Water Heaters 120

Cold Inlet Size 3/4 in

Commercial / Residential Both

Cord Conductor Gauge 8/2 AWG Wire

Country of Origin (subject to change) Germany

Current 35 A, 40 A

Default Temperature 140 Degrees F

Depth 4-5/8

Element Material Copper

Elements Copper Sheathed Housed in Cylinder

Environment Indoor

Features No Mechanical Switches, Completely Silent While Operating, Provides Continuous Hot Water On Demand, Saves Energy with Auto-Modulation, Digital Display for Accurate Temperature Setting, Smart Microprocessor Technology for Steady Temperature with Variable Flow

Height 14-1/2

Item - Water Heaters Electric Tankless Water Heater

Market Commercial, Residential

Max. Flow Rate 1 gpm

Maximum Delivered Temperature 140 Degrees F

Maximum Flow Rate 1 gpm

Maximum Water Pressure 150 psi

Min. Flow Activation 0.77 gpm

Minimum Delivered Temperature 70 Degrees F

Minimum Flow Activation 0.77 gpm

Minimum Water Pressure 30 psi

Mounting Any Direction

Mounting Orientation Horizontal, Vertical

Mounting Type Wall Mounting

NEMA Rating 1

Operating Voltage 208/240V AC

Overall Dimensions - H x W x D 14.5 in x 16.63 in x 4.63 in

Package Quantity 1

Phase - Water Heaters 1

Power Consumption 28,800 W

Pressure Range 30 to 150 psi

Standards ETL Listed, WQA

Temp. Range - Water Heaters 70 Degrees to 140 Degrees F

Temp. Rise @ 0.5 GPM 92 Degrees F

Temp. Rise @ 1.5 GPM 92 Degrees F

Temp. Rise @ 2.5 GPM - Water Heaters 79 Degrees F

Temp. Rise @ 6.0 GPM 33 Degrees F

Temperature Range 70 Degrees F to 140 Degrees F

Temperature Rise @ Flow 30 Degrees F @ 6.5 gpm, 40 Degrees F @ 5 gpm, 50 Degrees F @ 4 gpm, 60 Degrees F @ 3.4 gpm, 70 Degrees F @ 2.7 gpm, 80 Degrees F @ 2.4 gpm, 90 Degrees F @ 2.2 gpm

Voltage - Water Heaters 208/240

Water Connection 3/4 NPT

Water Heater Application General Purpose

Water Heater Design Whole House

Watts - Water Heaters 28,800

Width 16-5/8

Wire Size 8/2 AWG
