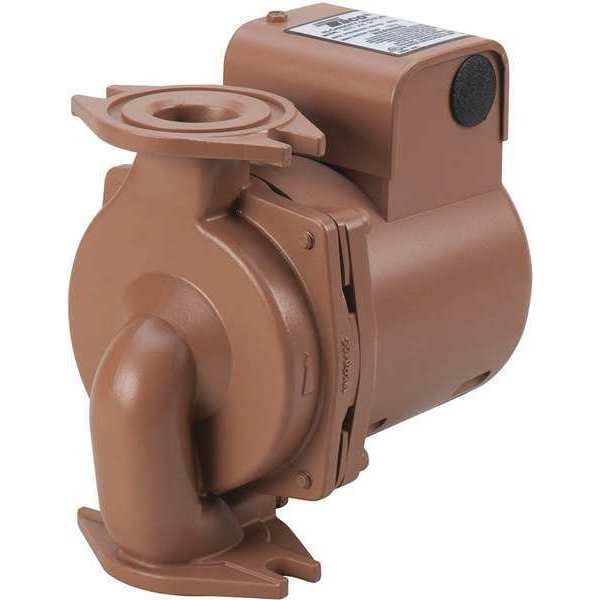

HVAC Circulating Pump, 1/6 hp, 115V/230V, 1 Phase, Flange Connection

HVAC Circulating Pump, 1/6 hp, 115V/230V, 1 Phase, Flange Connection

  • Taco
  • HVAC & Refrigeration, Pumps
  • Potable Water Circulating Pump, Compatible Intake Pipe Size 3/4 in, 1 in, 1 1/4 in, 1 1/2 in, Connection Type Flange, Face to Face Dimension 6 3/8 in, Flange or Union Included No, For Use With Potable Systems Yes, Horsepower 1/6, Maximum Feet of Head 29 ft, Maximum Flow Rate @ 10 Feet of Head 30 gpm, Maximum Flow Rate @ 15 Feet of Head 24 gpm, Nameplate Voltage 115V AC, Number of Speeds 1, Phase Single, Pump Type Standard, Series Family 2400, Maximum Flow Rate @ 20 Feet of Head 18 gpm

    graingerSKU: 5CHK2, mscSKU: , zoro_no: G3447044, mongo_id: 65bbe6623aaddbd5a9027cac

Web Price
$963.74 / each
Qty

Product Details

1.0/1.9 A
24 gpm @ 33 ft
EPDM
3/4 in, 1 in, 1 1/4 in, 1 1/2 in
3/4 in, 1 in, 1 1/4 in, 1 1/2 in
Water
Low Lead,NSF-372
Flange
Flange
United States
Direct
6 3/8 in
Compact, High Performance, Mechanical Seal, Permanently Lubricated Ball Bearings
No
No
Potable Systems
Yes
60 Hz
1/6
Stainless steel
Stainless Steel
1/6 hp
Potable Water Circulating Pump
Plastic
Flange Gaskets
3/4 in to 1-1/2 in
6 7/8 in
Open
3 yr
3 yr
32 gpm @ 7 ft
150 psi
225 Degrees F
29 ft
24 gpm
30 gpm
24 gpm
18 gpm
12 gpm
225 Degrees F
150 psi
3,450 RPM
Carbon/Silicon Carbide
8 gpm @ 46 ft
40 Degrees F
115V AC
1
6.88 in
4.5 in
1
Single
1
TACO Single Phase
Stainless Steel
In Line
Standard
Dry
3,450 RPM
2400-20
2400
Stainless Steel
49 ft
NSF, UL-CUS
yes
115V AC
115V AC
4 1/2 in
