Home / Sure-Flex Sleeve Coupling Flange, 8S, Bore 1"

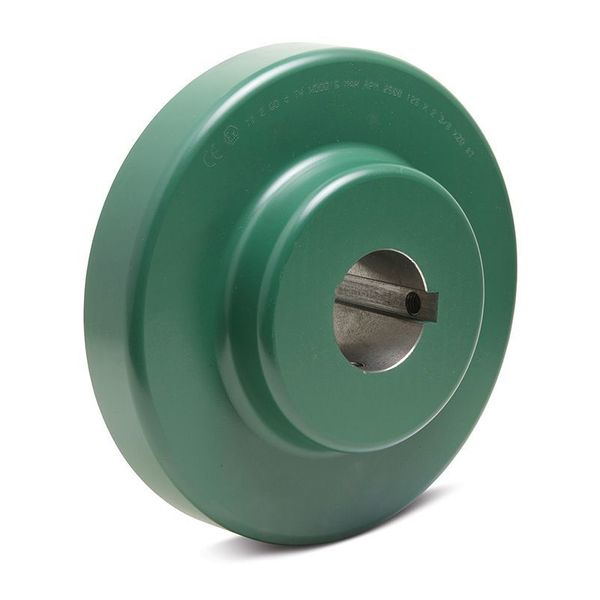

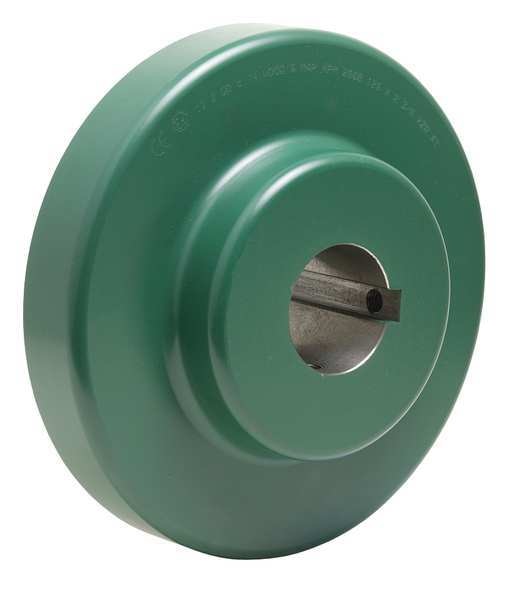

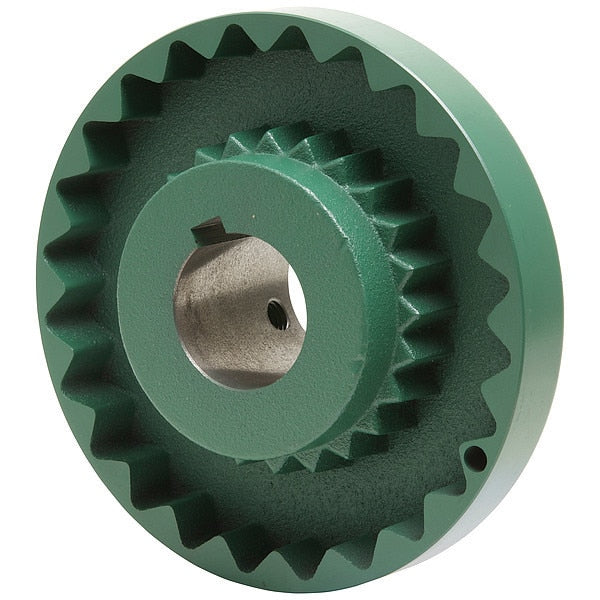

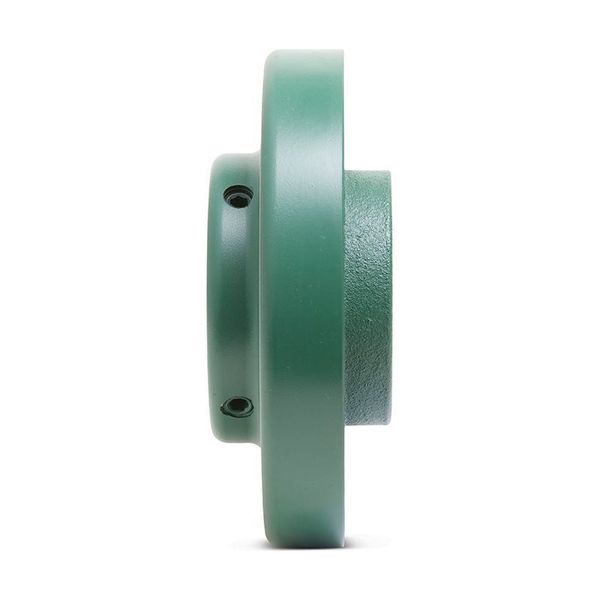

Sure-Flex Sleeve Coupling Flange, 8S, Bore 1"

  • G8513233
  • Tb Woods
  • Sleeve Coupling Flange, Coupling Size 8, Maximum Speed 4,500 RPM, Maximum Torque 1,475 in-lb, Outside Diameter 5 29/64 in, Bore Type Round Keyed, Hub Diameter 3 1/4 in, Hub Material Cast Iron, For Bushing Size Not Applicable, Bore Diameter 1 in, Length through Bore 2 3/32 in, System of Measurement Inch, Hub Body Length 3/4 in, Hub Type Flange Hub, Application Compressors, Conveyors, Motors, Pumps, Bore Tolerance +0.0005 in / +0.0015 in

    graingerSKU: 32ZR45, mscSKU: 53902177, zoro_no: G8513233, mongo_id: 65bbe9d322d7a989a997c252

Web Price
$69.99 / each
Qty

Product Details

Type-S Flange Close Coupled
1 in
1
1 in
+0.0005 in / +0.0015 in
Round Keyed
Fixed Bore
None
Mexico
8
4-way Flexing Action Absorbs Shock, Misalignment and End Float, Vibration
S
Not Applicable
Angular, Parallel
5.45 in
3/4 in
5.45 in
3 1/4 in
Cast Iron
Flange Hub
Applications In Motors, Pumps, Compressors, Blowers, Mixers and Conveyors
(2) Set Screws
Sleeve Coupling Flange
1/4 x 1/8
1/8 in
1/4 in x 1/8 in
1/4 in
2.09 in
cast iron
0.25 Degrees For Hytrel Sleeves, 1 Degrees For EPDM & Neoprene Sleeves
4,500 RPM
4,500 RPM
1,475 in-lb
5.45 in
5.450
5 29/64 in
1
Chemical Resistant, Oil Resistant
3/8-16
One Over the Key and One at 90 Degrees
One Over the Key and One at 90 Degrees
8
Inch
4.4 lb
2.09 in
