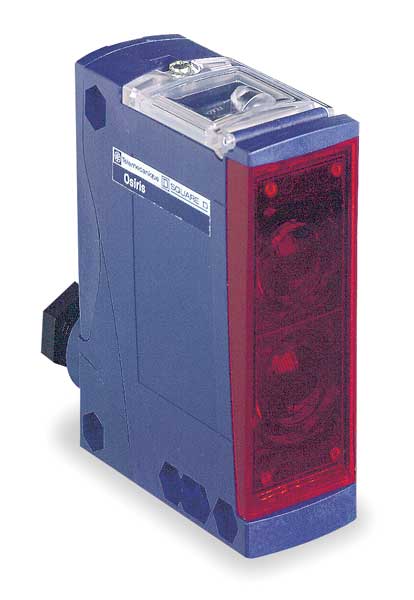

Photoelectric Sensor, Rectangle, Thru-Beam

SKU
Brand Telemecanique Sensors
Categories Electric and Cordless Tools
Description Photoelectric Sensor, Shape - Rectangular Photoelectric Sensor Rectangular, Sensing Method - Rectangular Photoelectric Sensor Through Beam Transmitter, Power Requirement - Rectangular Photoelectric Sensor 24 to 240V AC/DC, Output Circuit Type - Rectangular Photoelectric Sensor Transmitter, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Max. Sensing Distance - Rectangular Photoelectric Sensor 60 m, Electrical Connection - Rectangular Photoelectric Sensor Screw Terminal
graingerSKU: 4AJ48, mscSKU: , zoro_no: G0922747, mongo_id: 65bbe78f9a749db822744572

Web Price

$141.24 / each

Qty

Product Details

Add On Input test by emission breaking

Ambient Air Temperature For Operation -25-55ÃÂ°C

Ambient Air Temperature For Storage -40-70ÃÂ°C

Body Material PBT

Cable Entry 1 entry for M16 x 1.5 cable gland 7-10 mm

Circuit Type Transmitter

Country of Origin (subject to change) France

Current Consumption 20 mA no-load

Depth 3.44

Depth - Rectangular Photoelectric Sensor 87 mm

Detection System thru beam

Electrical Connection Screw Terminal

Electrical Connection - Rectangular Photoelectric Sensor Screw Terminal

Electrical Durability 500000 cycles 0.4 500 cyc/mn || 500000 cycles 1 3000 cyc/mn

Electronic Sensor Type photo-electric sensor transmitter

Emission infrared thru beam

Enclosure Material PBT

Features Diffuse With Background Suppression, Retro-Reflective and Polarized Retro-Reflective and Over Load Protection

Height 92 mm

Height - Rectangular Photoelectric Sensor 127 mm

Ip Degree Of Protection IP65 double insulation IEC 60529 || IP67 double insulation IEC 60529

IP Rating 67

Length 5.00

Lens Material PMMA

Light Source Infrared LED

Material plastic

Max. Load Current 3,000 mA

Max. Sensing Distance 60m

Max. Sensing Distance - Rectangular Photoelectric Sensor 60 m

Maximum Delay First Up 200 ms

Maximum Delay Recovery 25 ms

Maximum Delay Response 25 ms

Maximum Sensing Distance 60 m thru beam

Maximum Voltage Drop <1.5 V closed state)

NEMA Rating IP67

Operating Frequency 25 Hz

Operating Mode - Photoelectric Sensor Selectable Light On/Dark On

Operating Temp. Range -25 Degrees to 55 Degrees C

Operation Mode Selectable Light On/Dark On

Output Circuit Type - Rectangular Photoelectric Sensor Transmitter

Package Quantity 1

Power Requirement 24 to 240VAC/DC

Power Requirement - Rectangular Photoelectric Sensor 24 to 240V AC/DC

Product Certifications UL || CSA || CE

Response Time 25.0 msec

Sensing Method Through Beam Transmitter

Sensing Method - Rectangular Photoelectric Sensor Through Beam Transmitter

Sensor Design compact 92 x 71

Sensor Name XUX

Series Name general purpose multimode

Setting-Up without sensitivity adjustment

Shape Rectangular

Shock Resistance 30 gn 11 ms) IEC 60068-2-27

Standards CE Approval, RoHs Approval, UL Listed

Status Led 1 LED green)supply on

Supply Circuit Type AC/DC

Supply Voltage Limits 20-264 V AC/DC

Switching Capacity In Ma 0.5 A cos ÃÂ = 0.4 for 0.5 million cycles at 1 operating cycle per second at 250 V) || 3 A cos ÃÂ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V)

Switching Frequency <= 20 Hz

Time Delay Range 0.02...15 s monostable, on-delay or off-delay (programmable)

Vibration Resistance 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6

Width 1.18

Width - Rectangular Photoelectric Sensor 30 mm

Wiring Technique 3-wire

[Sn] Nominal Sensing Distance 40-40 m thru beam need a receiver

[Us] Rated Supply Voltage 24...240 V AC/DC
