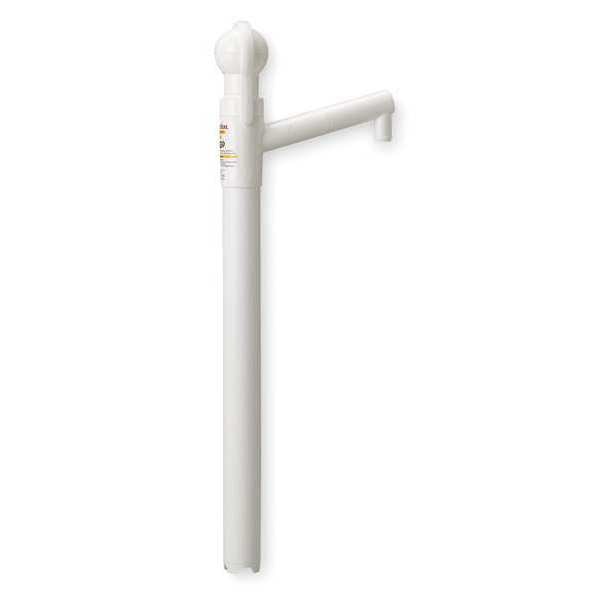

EZI Action(TM) Drum Pump, 15 to 30 Gal

Home / EZI Action(TM) Drum Pump, 15 to 30 Gal

EZI Action(TM) Drum Pump, 15 to 30 Gal

SKU
Brand Trico
Categories Pumps
Description Hand Operated Drum Pump, Pump Connection OD 1 5/8 in, Self-Priming No, Metered No, Hose Length Not Applicable, Includes Discharge Hose No, Piston Material Polyethylene, Polypropylene, Housing Finish Polyethylene; Polypropylene, Seal Material TPR, For Use With 36402, 36983, 36984, 36985, 36986, 36987, 36988, Adapter Connection Type MNPT, For Container Type Drum, Hose Cover Material Not Applicable, Includes Bung Adapter Yes, Includes Nozzle No, Includes Spout Yes, Runs Dry Yes
graingerSKU: 1YMV4, mscSKU: , zoro_no: G2377681, mongo_id: 65bbe79b3aaddbd5a90a4791

Web Price

$141.69 / each

Qty

Product Details

Action Type Lever

Adapter Connection Type MNPT

Adapter Material Polypropylene

Agency Compliance FDA Approved

Bung Connection Dia. 2 in

Compatible Chemicals Acetic Acid, Acetone, Ammonium Hydroxide, Anhydrous Ammonia, Antifreeze, Bleach, Calcium Chloride, Caustic Soda, Chromic Acid, Citric Acid, Ethanol, Ethyl Acetate, Ethylene Glycol, Formaldehyde, Formic Acid, Fresh Water, Glycerin, Hydrochloric, Hydrofluoric Acid, Isopropanol, Methanol, Muriatic Acid, Naphtha, Nitric Acid, Phosphoric Acid, Potassium Hydroxide, Salt Water, Sodium Bicarbonate, Sodium Bisulfate, Sodium Hydroxide, Sodium Hypochlorite, Sulfuric Acid

Container Size 15 to 30 Gallons

Country of Origin (subject to change) United States

Diesel Exhaust Fluid Compatible No

Discharge Tube Outlet ID 3/4 in

Discharge Tube Outlet OD 7/8 in

Duty Cycle Continuous

Extract 15 oz per stroke

Food Grade Yes

For Container Size 30 gal

For Container Type Drum

For Media Type Acetic Acid, Acetone, Ammonium Hydroxide, Calcium Chloride, Chromic Acid, Citric Acid, Ethanol, Formic Acid, Glycerin, Hydrochloric Acid, Hydrofluoric Acid, Isopropyl, Methanol, Naphtha, Nitric Acid, Phosphoric Acid, Potassium Hydroxide, Sodium Bicarbonate, Sodium Bisulfate, Sodium Hydroxide Soda, Sodium Hypochlorite, Sulfuric Acid, Water

For Use With 36402, 36983, 36984, 36985, 36986, 36987, 36988

Gear Lube NT

Grease NT

Hose Cover Material Not Applicable

Hose Inside Dia. Not Applicable

Hose Length Not Applicable

Hose Outside Dia. Not Applicable

Hose Tube Material Not Applicable

Housing Finish Polyethylene; Polypropylene

Housing Material - Pumps Polyethylene, Polypropylene

Includes Safety Strap and Adapter

Includes Bung Adapter Yes

Includes Discharge Hose No

Includes Nozzle No

Includes Spout Yes

Includes Suction Tube Yes

Max. Flow Rate 15 oz per stroke

Max. Fluid Temp. 170 Degrees F

Max. Oil Flow 15 oz per stroke

Max. Viscosity 8,800 cps

Metered No

Mount Type Bung

Not Recommended Chemicals Biodiesel, Cyclohexane, Diesel Fuel, Formaldehyde, Gasoline, Heptane, Hexane, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Hydrazine, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Kerosene, Lacquer Thinners, Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Nitric Acid (20% Solution), Nitric Acid (Concentrated Solution), Stoddard Solvent (Mineral Spirits), Sulfuric Acid (75% - 100%), Toluene, Trichlorethylene (50%), Turpentine, Xylene

Ounces per Stroke 15

Output 15 oz per stroke

Package Quantity 1

Piston Material Polyethylene, Polypropylene

Power Source Hand Operated

Pump Connection ID 2 in

Pump Connection OD 1 5/8 in

Runs Dry Yes

Seal Material TPR

Self-Priming No

Spout Material Polypropylene

Suction Tube ID 1 1/2 in
