Home / BushedRlrChnSprkt, SplitTaper, 1610, 3/4in
BushedRlrChnSprkt, SplitTaper, 1610, 3/4in

BushedRlrChnSprkt, SplitTaper, 1610, 3/4in

  • Tritan
  • Adhesives, Epoxy & Sealants

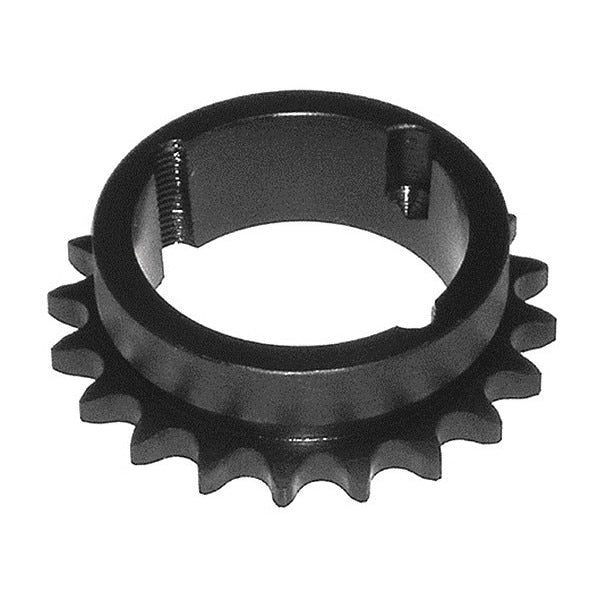

  • Bushed Roller Chain Sprocket, For Bushing Size 1610, For Bushing Type Split Taper, For Chain Pitch 3/4 in, Material Steel, Number of Teeth 19, Outside Diameter 4.945 in, Pitch Diameter 4.557 in, Chain Number 60, For Number of Strands Single, Maximum Bore Diameter 1 5/8 in, Finish Black Oxide, Hub Diameter 3 1/4 in, Hub Projection 0.541 in, Hub Type One Side, Length through Bore 1 in, Standards ANSI B29.1, BIS, Teeth Heat Treatment Hardened Teeth, Tooth Width 0.459 in

    graingerSKU: 55WD16, mscSKU: , zoro_no: G7872585, mongo_id: 65bbe83a22d7a989a98e1f61

Web Price
$77.99 / each
Qty

Product Details

1610
1610
60
China
Black Oxide
1610
Split Taper
60
3/4 in
Single
3 1/4 in
0.541 in
One Side
60
Roller Chain Sprocket
1 in
Steel
Steel
1 5/8 in
Single
19
19
4.945 in
4.945 in
1
3/4
4.557 in
4.557 in
Taper Lock
Taper-Lock(R) Bushed Bore
ANSI B29.1, BIS
Hardened Teeth
-50 to +500° F
0.459 in
Not Applicable
