Home / Single Vane Pump, 60gpm, 11.75 cu. in./rev

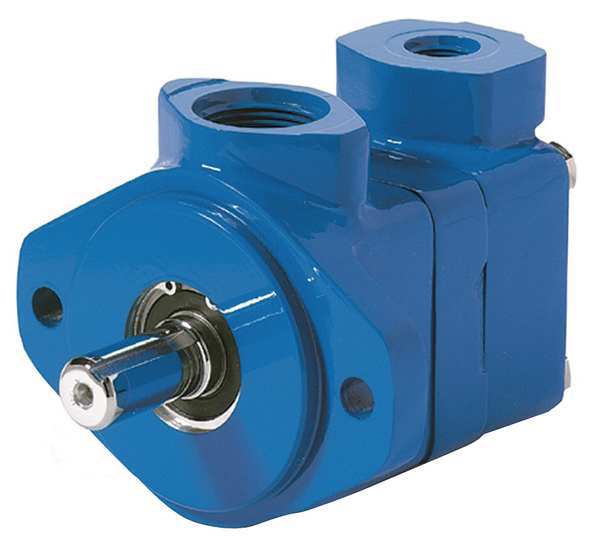

Single Vane Pump, 60gpm, 11.75 cu. in./rev

Single Vane Pump, 60gpm, 11.75 cu. in./rev

  • Vickers
  • Pumps
  • Single Vane Pump, Flow Rate - Maximum 60 gpm, Displacement per Revolution 11.6 cu in/rev, Media Intake Connection Size 3 in, Discharge Connection Size 1 1/2 in, Discharge Connection Type Flange, Rotation CW, Mounting Type SAE 4 Bolt Flange, Shaft Type Keyed, Motor Speed - Maximum 1,800 RPM, Shaft Outer Diameter 1 in, Operating Pressure - Maximum 2,500 psi, Housing Material Cast Iron, Media Intake Connection Type SAE Code 61 Flange, Motor Speed - Minimum 1,800 RPM, Overall Height 6.9 in
Web Price
$1,982.49 / each
Qty

Product Details

Lifts, Mobile Equipment, Power Units
United States
1 1/2 in
Flange
11.75 cu in/rev
11.6 cu in/rev
60 gpm
60 gpm
Cast Iron
3 in CD 61 Flange
2,500 psi
1,800 RPM
3 in
SAE Code 61 Flange
600 RPM
1,800 RPM
1,800 RPM
SAE C 2 Bolt Flange
2,500 psi
1.5 in CD 61 Flange
6.9 in
11.9 in
8.4 in
1
Opposite Inlet Port
CW
Buna-N
1 in
Right
1 in
Keyed
Keyed
