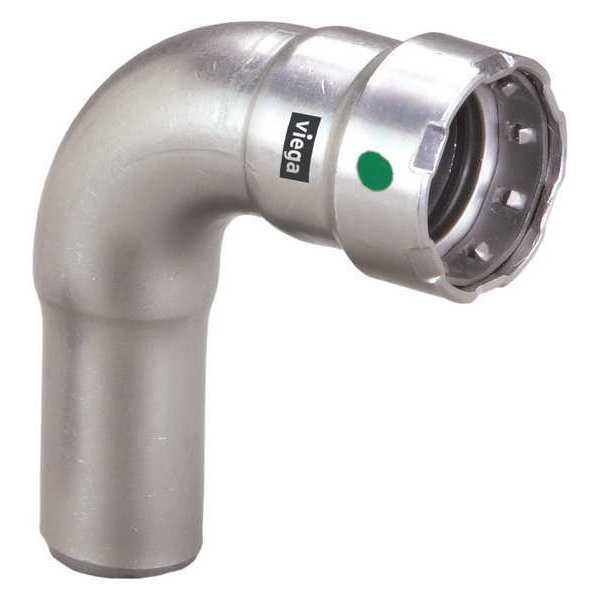

Viega MegaPress 90 street elbow, 1/2" x 1/2"

Home / Viega MegaPress 90 street elbow, 1/2" x 1/2"

Viega MegaPress 90 street elbow, 1/2" x 1/2"

SKU
Brand Viega
Categories
Description 90 Degree Street Elbow, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type FTG, Fitting Side B Copper Tube Size 1/2 in, Fitting Material Stainless Steel, Fitting Side A Pipe Size 1/2 in, Material Grade 316, O-Ring Material EPDM, Specific Fitting Shape 90 Degrees Street Elbow Adapter, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F
graingerSKU: 53UA51, mscSKU: , zoro_no: G0566209, mongo_id: 65bbe99422d7a989a9964777

Web Price

$77.36 / each

Qty

Product Details

Application Potable Water

Compliance CRN 13492.5 A/B, IAPMO PS117, ICC-LC1002, NSF 372, NSF/ANSI 61

Connection Type Press-Fit x FTG

Copper Tube Size 1/2 in

Country of Origin (subject to change) Germany

End Connection Type Fitting, Press

Fitting Body Material 316 Stainless Steel

Fitting Connection Type Press x Street

Fitting Copper Tube Size 1/2 in

Fitting Material Stainless Steel

Fitting Pipe Size 1/2 in

Fitting Shape Elbow

Fitting Side A Connection Type Press-Fit

Fitting Side A Pipe Size 1/2 in

Fitting Side B Connection Type FTG

Fitting Side B Copper Tube Size 1/2 in

Material Grade 316

Max. Pressure 200 psi

Maximum Operating Pressure 200 psi

Maximum Operating Temperature 250 Degrees F

Minimum Operating Temperature 0 Degrees F

O-Ring Material EPDM

Package Quantity 1

Pipe Fitting Connection Type Press x Street

Pipe Size 1/2 in

Pipe Size (Fittings) 1/2 x 1/2

Pipe Size - Pipe Fitting 1/2 in x 1/2 in

Specific Fitting Shape 90 Degrees Street Elbow Adapter

Specific Pipe Fitting Shape 90 Degrees Street Elbow

Standards ASTM A312, ASTM A403, CRN 13492.5 A/B, IAPMO, IAPMO PS 117, ICC, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9

Stop and Shape 90 Degrees Street Elbow Adapter

Temp. Range 0 Degrees to 250 Degrees F

Tube Fitting Material 316 Stainless Steel

Tube Size 1/2 in x 1/2 in
