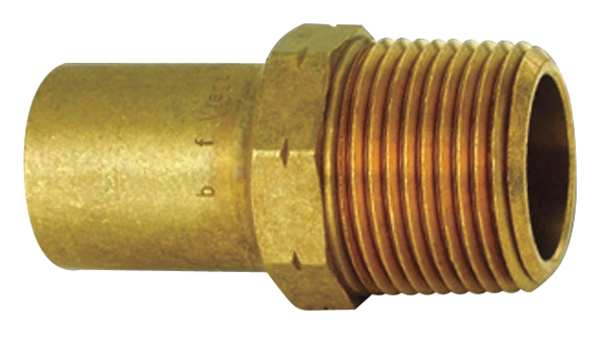

Viega ProPress adapter, 1-1/2" x 1-1/2"

SKU
Brand Viega
Categories
Description Adapter, Application Potable Water, Fitting Side A Connection Type FTG, Fitting Side B Connection Type MNPT, Fitting Side A Copper Tube Size 1 1/2 in, Fitting Material Bronze, Fitting Side B Pipe Size 1 1/2 in, O-Ring Material EPDM, Specific Fitting Shape Straight Adapter, Overall Length 2 29/32 in, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F
graingerSKU: , mscSKU: , zoro_no: G3103667, mongo_id: 65bbe6183aaddbd5a9008211

Web Price

$73.74 / each

Qty

Product Details

Application Potable Water

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Adapter

Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213

Connection Type FTG x MNPT

Copper Tube Size 1 1/2 in

Country of Origin (subject to change) Germany

End Connection Type Fitting, Threaded

Fitting Connection Type Street x Male Pipe Thread

Fitting Copper Tube Size 1 1/2 in

Fitting Material Bronze

Fitting Pipe Size 1 1/2 in

Fitting Shape Adapter

Fitting Side A Connection Type FTG

Fitting Side A Copper Tube Size 1 1/2 in

Fitting Side B Connection Type MNPT

Fitting Side B Pipe Size 1 1/2 in

Max. Pressure 200 psi

Maximum Operating Pressure 200 psi

Maximum Operating Temperature 250 Degrees F

Minimum Operating Temperature 0 Degrees F

O-Ring Material EPDM

Overall Length 2 29/32 in

Package Quantity 1

Pipe Fitting Connection Type Street x Male Pipe Thread

Pipe Size 1 1/2 in

Pipe Size (Fittings) 1-1/2 x 1-1/2

Pipe Size - Pipe Fitting 1-1/2 in x 1-1/2 in

Specific Fitting Shape Straight Adapter

Specific Pipe Fitting Shape Adapter

Standards ABS Type Approval, CRN, CRN 0A14541.5 A/B/C, CSA, CSA MSE-13, FM Class 1920, IAPMO, IAPMO PS 117, ICC, ICC-ES PMG-1037, NFPA 13, NFPA 13D, NFPA 13R, NSF/ANSI 372, NSF/ANSI 61, PHCC, UL, ULC/ORD 213

Stop and Shape Straight Adapter

Temp. Range 0 Degrees to 250 Degrees F

Tube Fitting Material Bronze

Tube Size 1-1/2 in x 1-1/2 in
