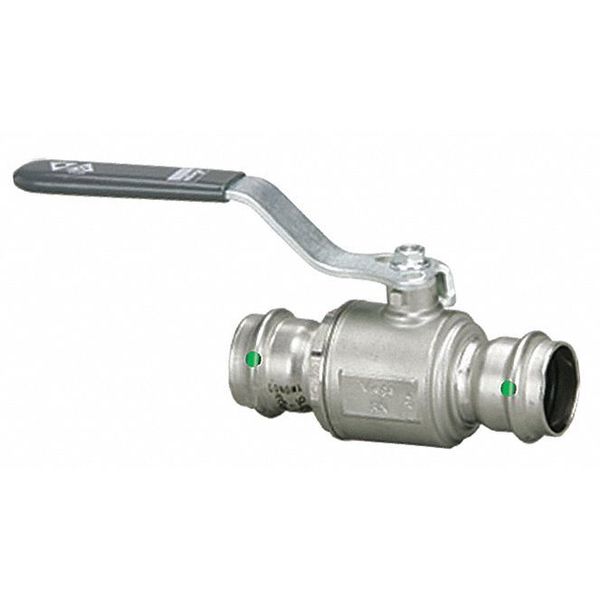

Viega ProPress ball valve, 1-1/2" x 1-1/2"

SKU
Brand Viega
Categories
Description Ball Valve, Body Material 316 Stainless Steel, Body Style Inline, 2-Piece, Pipe Size 1 1/2 in, Tube Size 1 1/2 in x 1 1/2 in, Connection Type Press x Press, Full Port, Max. Pressure 200 psi CWP, Max. Steam Pressure 15 psi WSP, Temp. Range 0 Degrees to 250 Degrees F, Ball Material Stainless Steel, Seat Material PTFE, Stem Type Blowout Proof, Handle Type Locking Lever, Handle Material Zinc Plated Steel with Vinyl Grip, Stem Material 316 Stainless Steel, Body Seal Material EPDM
graingerSKU: , mscSKU: , zoro_no: G0496492, mongo_id: 65bbe97422d7a989a9958658

Web Price

$404.99 / each

Qty

Product Details

Ball Material Stainless Steel

Ball Valve Basic Body Material Stainless Steel

Ball Valve Product Group Manual

Body Material 316 Stainless Steel

Body Seal Material EPDM

Body Style Inline

Compliance ABS: America Bureau of Shipping, CRN 13492.5 A/B/C, CSA B125.3: Plumbing Fittings (valves), IAPMO PS117, NSF 372, NSF/ANSI 61

Connection P x P

Connection Type Press x Press

Country of Origin (subject to change) China

Features Smart Connect

General Connection Type Press

Handle Material Zinc Plated Steel with Vinyl Grip

Handle Type Locking Lever

Material of Construction 316 Stainless Steel

Max. Pressure 200 psi CWP

Max. Steam Pressure 15 psi WSP

Package Quantity 1

Pipe Size 1 1/2

Port Full

Seat Material PTFE

Standards ASME B31.1: Power Piping, ASME B31.3: Process Piping, ASME B31.9: Building Service Piping, ASTM A312: Standard Specification for Seamless Welded and Heavily Cold Worked Austenitic Stainless Steel Pipe, ASTM A403: Standard Specification for Wrought Austenitic Stainless Steel Piping, ASTM A554: Standard Specification for Welded Stainless Steel Mechanical Tubing, IAPMO: Uniform Plumbing Code, ICC: International Plumbing Code, NSF/ANSI 372: Drinking Water System Components - Lead Content

Stem Material 316 stainless steel

Stem Type Blowout Proof

Sub-Category Steel Ball Valves

Temp. Range 0 Degrees to 250 Degrees F

Tube Size 1 1/2 x 1 1/2

Valve Structure 2-Piece
