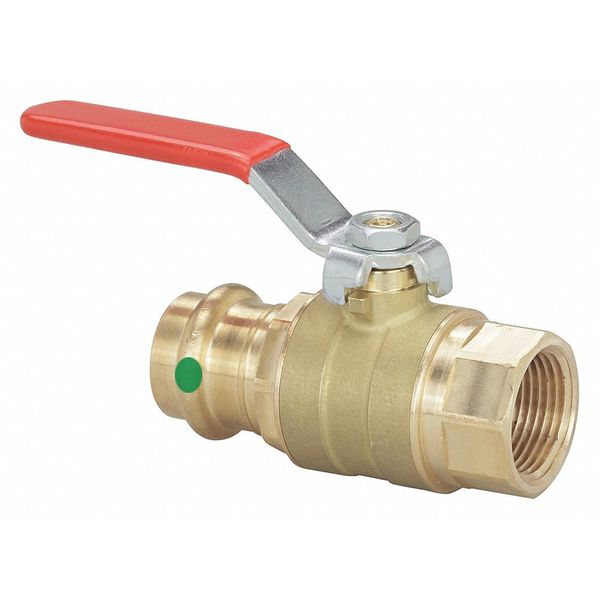

Viega ProPress ball valve, 1/2" x 1/2"

SKU
Brand Viega
Categories
Description Ball Valve, Body Material Brass, Bronze, Body Style Inline, 3-Piece, Pipe Size 1/2 in, Tube Size 1/2 in x 1/2 in, Connection Type FNPT x Press, Full Port, Max. Pressure 200 psi CWP, Max. Steam Pressure 15 psi WSP, Temp. Range 0 Degrees to 250 Degrees F, Ball Material Chrome Plated Brass, Seat Material PTFE, Stem Type Blowout Proof, Handle Type Lever, Handle Material Zinc Plated Steel with Vinyl Grip, Stem Material Brass, Body Seal Material EPDM
graingerSKU: 33KF40, mscSKU: , zoro_no: G8867573, mongo_id: 65bbe9bf22d7a989a99752e7

Web Price

$36.36 / each

Qty

Product Details

Ball Material Chrome Plated Brass

Ball Valve Basic Body Material Bronze

Ball Valve Product Group Manual

Body Material Brass, Bronze

Body Seal Material EPDM

Body Style Inline

Compliance ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213

Connection Type FNPT x Press

Country of Origin (subject to change) Italy

Features Smart Connect

General Connection Type Female NPT

Handle Material Zinc Plated Steel with Vinyl Grip

Handle Type Lever

Max. Pressure 200 psi CWP

Max. Steam Pressure 15 psi WSP

Package Quantity 1

Pipe Size 1/2

Port Full

Seat Material PTFE

Standards 13D and 13R: Fire Sprinkler Applications, CRN: Canadian Registration Number, CSA International: Canadian Standards Association, FM: FM Global, IAPMO: Uniform Plumbing Code, ICC: International Plumbing Code, NFPA 13, NSF/ANSI 372: Drinking Water System Components - Lead Content, NSF/ANSI 61: Drinking Water System Components - Health Effects, PHCC: National Standard Plumbing Code, UL: Underwriters Laboratories

Stem Material brass

Stem Type Blowout Proof

Temp. Range 0 Degrees to 250 Degrees F

Tube Size 1/2 x 1/2

Valve Structure 3-Piece
