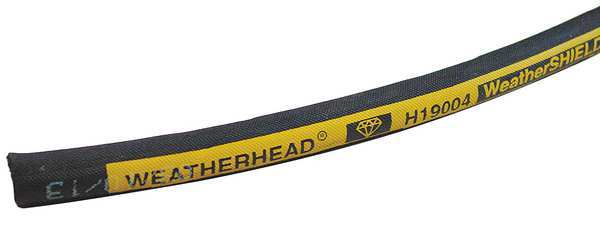

Hydraulic Hose, 3/8in.IDx50 ft., 3400 psi

Home / Hydraulic Hose, 3/8in.IDx50 ft., 3400 psi

Hydraulic Hose, 3/8in.IDx50 ft., 3400 psi

SKU
Brand Weatherhead
Categories Lifting and Hydraulics
Description Hydraulic Hose, Hose Inside Dia. 3/8 in, Hose Outside Dia. 25/32 in, Hose Length 50 ft, Hose Tube Material Nitrile, Hose Cover Material Synthetic Rubber, Hose Reinforcement Type Braid, Hose Reinforcement Material Carbon Steel, Hose Color Black, Series H190, Max. Working Pressure @ 70 F 3,400 psi, Safety Factor 4:1, Temp. Range Petroleum-Based Hydraulic Fluids: -40 Degrees to 260 Degrees F, Water-Based Hydraulic Fluids: -40 Degrees to 158 Degrees F, Water: 32 Degrees to 158 Degrees F

Web Price

$466.69 / each

Qty

Product Details

Application Hydraulics

Compatible Chemicals Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fresh Water, Fuel Oil, Gasoline, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Lithium Grease, Lubricated Air, Mineral Oil, Motor Oil, Salt Water

Country of Origin (subject to change) United States

Cover Material Synthetic Rubber

Dash Size 06

For Media Type Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fuel Oil, Gasoline, Hydraulic Fluid, Kerosene, Lithium Grease, Lubricated Air, Mineral Oil, Motor Oil, Water

Hose Color Black

Hose Configuration Bulk Hose

Hose Cover Material Synthetic Rubber

Hose Inside Dia. 3/8 in

Hose Inside Dia. (In.) 3/8

Hose Length 50 ft

Hose Length (Ft.) 50

Hose Outside Dia. 25/32 in

Hose Outside Dia. (In.) 11/16

Hose Reinforcement Material Carbon Steel

Hose Tube Material Nitrile

Max. Working Pressure @ 70 F 3,400 psi

Min. Bend Radius (In.) 5

Operating Pressure (PSI) 3400

Package Quantity 1

Reinforcement Steel Braid

Safety Factor 4:1

Series H190

Standards EN 853 1SN, ISO 1436-1 Type ISN, J1942/1, MSHA, SAE 100R1AT Type S

Temp. Range Petroleum-Based Hydraulic Fluids: -40 Degrees to 260 Degrees F, Water-Based Hydraulic Fluids: -40 Degrees to 158 Degrees F, Water: 32 Degrees to 158 Degrees F

Temp. Range (F) Petroleum Based Hydraulic Fluid: -40 Degrees to 260 Degrees , Water Based Hydraulic Fluid: -40 Degrees to 158 Degrees

Tube Material Synthetic Rubber

Type Crimped
