Home / Pump Motor, 3-Ph, 100 HP, 3555,208-230/460V

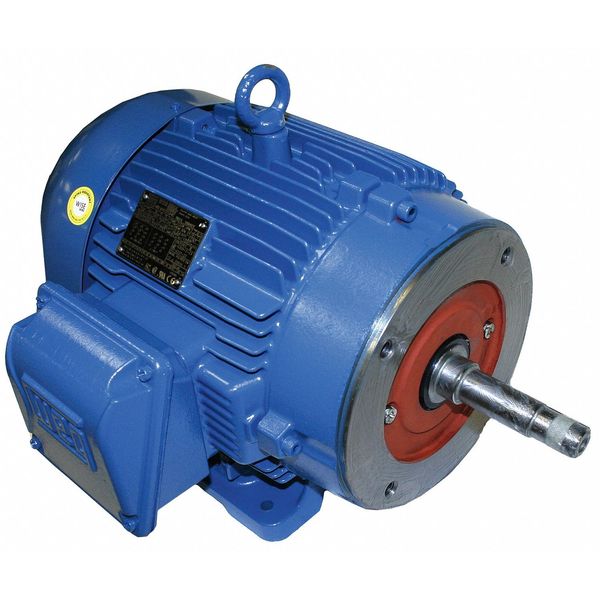

Pump Motor, 3-Ph, 100 HP, 3555,208-230/460V

Pump Motor, 3-Ph, 100 HP, 3555,208-230/460V

  • Weg
  • Pumps
  • Close-Coupled Pump Motor, Body Dia. 19.6 in, Bolt Circle Dia. 11 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 405TCZ, Hz 60, Full Load Amps 243.0-220.0/110.0, Height 19 9/16 in, HP 100 hp, HP @ 50Hz 75, 100, Ins. Class F, Inverter Rated Yes, Inverter Rating 1000:1, Length Less Shaft 32 1/2 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase

    graingerSKU: 6FKF3, mscSKU: , zoro_no: G3634285, mongo_id: 65bbe7753aaddbd5a909655f

Web Price
$15,604.99 / each
Qty

Product Details

Industrial and Commercial Water Pumping, Processing, Transferring and Circulating Pumps
19.6 in
11 in
CC029A
Exterior
F1
Multiple
Continuous
Continuous
405TCZ
Cast Iron
243.0-220.0/110.0
NEMA Premium(R) Rated
19 9/16 in
75, 100
100 hp
60
F
Yes
1000:1
32 1/2 in
3 yr
40 Degrees C
Pump
Ball
3-Phase
NEMA Premium Efficient
Totally Enclosed Fan-Cooled
Cast Iron
Horizontal
Face/Base
1.25
JM Threaded
CW/CCW
Close-Coupled Pump
None
3,545
B
1
94.1 %
37 3/4 in
1
Three
Regreasable Bearings
2,960
3,001-3,600
1
1 1/4 in
1-1/4
5 1/4 in
Carbon Steel
JM Threaded
CSA (LR38324), CSA (LR50962), UL (E104590)
No
No
208-230/460V AC
380/400/415
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
1,113 lb
