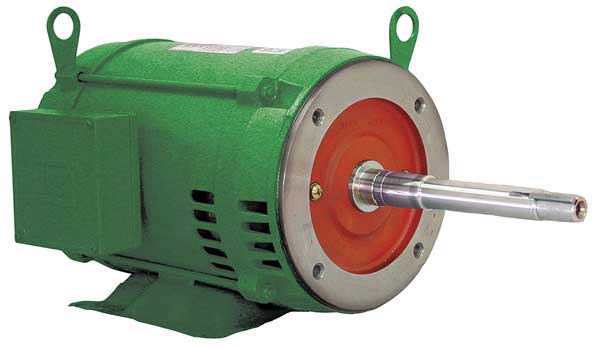

Pump Motor, 3-Ph, 60 HP, 3555,460V, 326JP

Home / Pump Motor, 3-Ph, 60 HP, 3555,460V, 326JP

Pump Motor, 3-Ph, 60 HP, 3555,460V, 326JP

SKU G9871836
Brand Weg
Categories Pumps
Description Close-Coupled Pump Motor, Body Dia. 17.8 in, Bolt Circle Dia. 11 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 326JP, Hz 60, Full Load Amps 71.0, Height 17 3/4 in, HP 60 hp, HP @ 50Hz 50, Ins. Class F, Inverter Rated Yes, Inverter Rating 1000:1, Length Less Shaft 22 5/16 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
graingerSKU: 4EUP8, mscSKU: , zoro_no: G9871836, mongo_id: 65bbe7949a749db822745148

Web Price

$6,039.99 / each

Qty

Product Details

Application Centrifugal Close-Coupled Pumps Where the Pump Impeller is Mounted Directly to the Threaded Motor Shaft

Body Dia. 17.8 in

Bolt Circle Dia. 11 in

CC Number CC029A

Conduit Box Location Exterior

Conduit Box Position F1

Country of Origin (subject to change) Multiple

Duty Continuous

Duty Cycle Continuous

Frame 326JP

Frame Material Cast Iron

Full Load Amps 71.0

Green Certification or Other Recognition NEMA Premium Rated

Green Environmental Attribute Product Contributes To Reducing Energy Consumption

Height 17 3/4 in

HP @ 50Hz 50

HP_ 60 hp

Hz_ 60

Ins. Class F

Inverter Rated Yes

Inverter Rating 1000:1

Length Less Shaft 22 5/16 in

Manufacturers Warranty Length 3 yr

Max. Ambient Temp. 40 Degrees C

Motor Application Pump

Motor Bearings Ball

Motor Design 3-Phase

Motor Efficiency Group NEMA Premium Efficient

Motor Enclosure Design Open Dripproof

Motor Frame Material Cast Iron

Motor Mounting Position Horizontal

Motor Mounting Type Face/Base

Motor Service Factor 1.25

Motor Shaft Design JP Threaded

Motor Shaft Rotation CW/CCW

Motor Sub Application Close-Coupled Pump

Motor Thermal Protection None

Nameplate RPM 3,560

NEMA Design B

No. of Speeds 1

Nominal Efficiency 93.6 %

Overall Length 30 7/16 in

Package Quantity 1

Phase Three

Regreasable Bearings Regreasable Bearings

RPM @ 50Hz 2,960

RPM Range 3,001-3,600

Service Factor @ 50Hz 1

Shaft Dia. 1 1/4 in

Shaft Dia. (In.) 1-1/4

Shaft Length 8 1/8 in

Shaft Material Carbon Steel

Shaft Type JP Threaded

Standards CSA (LR38324), UL (E104590)

Usable @ 200V No

Usable @ 208V Yes

Voltage 460V AC

Voltage @ 50Hz 380/400/415

Voltage Compatibility 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 220-230/460V AC, 220/460V AC, 230/460/796V AC, 230/460V AC, 440-460V AC, 460/796V AC, 460V AC

Warranty 5ZZX4

Weight 489 lb
