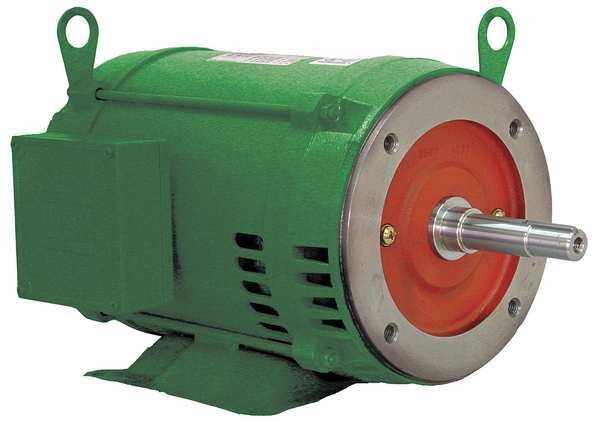

Pump Mtr, 3ph, 20hp, 1775,208-230/460,256JM

Pump Mtr, 3ph, 20hp, 1775,208-230/460,256JM

  • Weg
  • Pumps
  • Close-Coupled Pump Motor, Body Dia. 12.9 in, Bolt Circle Dia. 7 1/4 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 256JM, Hz 60, Full Load Amps 55.3-50.0/25.0, Height 14 3/8 in, HP 20 hp, HP @ 50Hz 15, Ins. Class F, Inverter Rated Yes, Inverter Rating 1000:1, Length Less Shaft 19 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase

    graingerSKU: 4EUU9, mscSKU: , zoro_no: G0663722, mongo_id: 65bbea2f22d7a989a999cefe

Web Price
$2,911.24 / each
Qty

Product Details

Centrifugal Close-Coupled Pumps Where the Pump Impeller is Mounted Directly to the Threaded Motor Shaft
12.9 in
7 1/4 in
CC029A
Exterior
F1
Multiple
Continuous
Continuous
256JM
Cast Iron
55.3-50.0/25.0
NEMA Premium Rated
Product Contributes To Reducing Energy Consumption
14 3/8 in
15
20 hp
60
F
Yes
1000:1
19 in
3 yr
40 Degrees C
Pump
Ball
3-Phase
NEMA Premium Efficient
Open Dripproof
Cast Iron
Horizontal
Face/Base
1.25
JM Threaded
CW/CCW
Close-Coupled Pump
None
1,765
B
1
93 %
24 1/4 in
1
Three
Regreasable Bearings
1,470
1,701-1,800
1
1 1/4 in
1-1/4
5 1/4 in
Carbon Steel
JM Threaded
CSA (LR38324), UL (E104590)
No
Yes
208-230/460V AC
380/400/415
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
2ACD4
268 lb
