Home / Pump Mtr, 3ph, 40hp, 3535,208-230/460,286JP

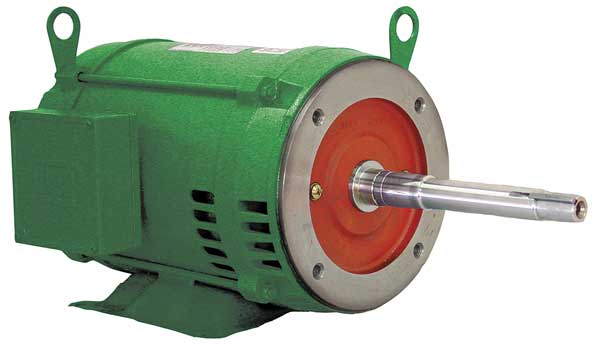

Pump Mtr, 3ph, 40hp, 3535,208-230/460,286JP

Pump Mtr, 3ph, 40hp, 3535,208-230/460,286JP

  • Weg
  • Pumps
  • Close-Coupled Pump Motor, Body Dia. 15.7 in, Bolt Circle Dia. 11 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 286JP, Hz 60, Full Load Amps 84.8-94.2/47.1, Height 15 3/4 in, HP 40 hp, HP @ 50Hz 30, Ins. Class F, Inverter Rated Yes, Inverter Rating 1000:1, Length Less Shaft 20 5/16 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase

    graingerSKU: 4EUP3, mscSKU: , zoro_no: G0715827, mongo_id: 65bbe99422d7a989a996382c

Web Price
$4,573.74 / each
Qty

Product Details

Centrifugal Close-Coupled Pumps Where the Pump Impeller is Mounted Directly to the Threaded Motor Shaft
15.7 in
11 in
CC029A
Exterior
F1
Multiple
Continuous
Continuous
286JP
Cast Iron
84.8-94.2/47.1
NEMA Premium Rated
Product Contributes To Reducing Energy Consumption
15 3/4 in
30
40 hp
60
F
Yes
1000:1
20 5/16 in
3 yr
40 Degrees C
Pump
Ball
3-Phase
NEMA Premium Efficient
Open Dripproof
Cast Iron
Horizontal
Face/Base
1.25
JP Threaded
CW/CCW
Close-Coupled Pump
None
3,540
B
1
92.4 %
28 7/16 in
1
Three
Regreasable Bearings
2,950
3,001-3,600
1
1 1/4 in
1-1/4
8 1/8 in
Carbon Steel
JP Threaded
CSA (LR38324), UL (E104590)
No
Yes
208-230/460V AC
380/400/415
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
366 lb
