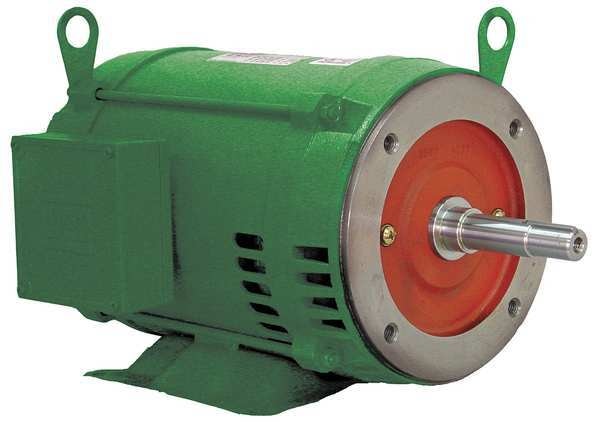

PumpMtr, 3ph, 100hp, 1780,208-230/460,404JM

PumpMtr, 3ph, 100hp, 1780,208-230/460,404JM

  • Weg
  • Pumps
  • Close-Coupled Pump Motor, Body Dia. 19.4 in, Bolt Circle Dia. 11 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 404JM, Hz 60, Full Load Amps 207.0-230.0/115.0, Height 22 1/4 in, HP 100 hp, Ins. Class F, Inverter Rated Yes, Inverter Rating 1000:1, Length Less Shaft 27 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase

    graingerSKU: 4EUX2, mscSKU: , zoro_no: G9871626, mongo_id: 65bbe76a9a749db822736d47

Web Price
$10,044.99 / each
Qty

Product Details

Centrifugal Close-Coupled Pumps Where the Pump Impeller is Mounted Directly to the Threaded Motor Shaft
19.4 in
11 in
CC029A
Exterior
F1
Multiple
Continuous
Continuous
404JM
Cast Iron
207.0-230.0/115.0
NEMA Premium Rated
Product Contributes To Reducing Energy Consumption
22 1/4 in
100 hp
60
F
Yes
1000:1
27 in
3 yr
40 Degrees C
Pump
Ball
3-Phase
NEMA Premium Efficient
Open Dripproof
Cast Iron
Horizontal
Face/Base
1.25
JM Threaded
CW/CCW
Close-Coupled Pump
None
1,780
B
1
95.4 %
32 1/4 in
1
Three
Regreasable Bearings
1,701-1,800
1 1/4 in
1-1/4
5 1/4 in
Carbon Steel
JM Threaded
CSA (LR38324), UL (E104590)
No
Yes
208-230/460V AC
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
992 lb
