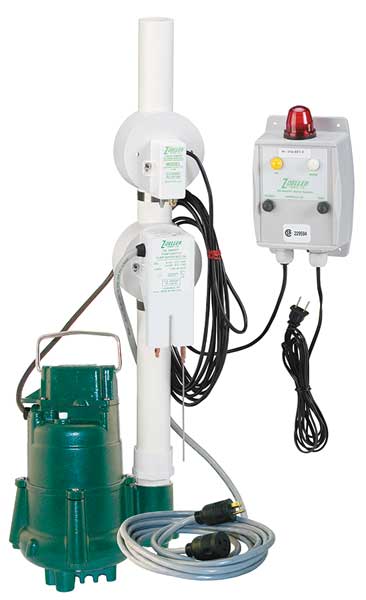

4/10 HP 1-1/2" Elevator Sump Pump with Oil Sensor 115V Piggyback

Home / 4/10 HP 1-1/2" Elevator Sump Pump with Oil Sensor 115V Piggyback

4/10 HP 1-1/2" Elevator Sump Pump with Oil Sensor 115V Piggyback

SKU
Brand Zoeller
Categories Pumps
Description Elevator Sump Pump with Oil Sensor, HP 4/10, Rated Voltage 115V AC, Hz 60, Amps 8.5 A, Flow Rate @ 10 Ft. of Head 61 gpm, Flow Rate @ 20 Ft. of Head 44.0 gpm, Flow Rate @ 30 Ft. of Head 23.0 gpm, Max. Head 38.0 ft, Switch Actuation Sensor, Switch Electrical Connection Piggyback, Off Point 18-1/8 in, On Point 12 1/8 in, Body Material Cast Iron, Impeller Material Polypropylene, Shaft Seal Material - Pumps Carbon, Ceramic, Min. Sump Pit Dia. 18 in, Minimum Water Depth 14 in
graingerSKU: 5CZF8, mscSKU: , zoro_no: G1701664, mongo_id: 65bbe9a522d7a989a996c725

Web Price

$3,247.49 / each

Qty

Product Details

Agency Compliance CSA/UL

Alarm Audio 71 db Visual

Alarm Duration Continuous

Alarm Duration - Pumps Continuous

Alarm Included Yes

Alarm Output Audible, Dry Contact Remote Terminal, Visual

Alarm Output - Pumps Audible, Dry Contact Remote Terminal, Visual

Amps 8.5 A

Amps - Pumps 8.50

Application Elevator Sumps, Transformer Vaults and Commercial Applications

Base Material Cast Iron

Bearing Type Upper Sleeve/Lower Ball

Body Material Cast Iron

Check Valve Not included

Cord Length 20 ft

Cord Length - Pumps 20 ft.

Country of Origin (subject to change) United States

Discharge 1-1/2 in FNPT

Discharge Dia. 1 1/2 in

Discharge Gender Female

Discharge NPT 1-1/2

Discharge Standard NPT

Duty Continuous

Duty Cycle Continuous

Features Sensors Have a Preset On/Off Range of 6 but Level of Where Sensors Go is Adjustable

Flow Rate @ 10 Ft. of Head 61 gpm

Flow Rate @ 20 Ft. of Head 44.0 gpm

Flow Rate @ 30 Ft. of Head 23.0 gpm

GPM of Water @ 10 Ft. of Head 61

GPM of Water @ 15 Ft. of Head 53

GPM of Water @ 20 Ft. of Head 44

GPM of Water @ 25 Ft. of Head 34

GPM of Water @ 30 Ft. of Head 23

GPM of Water @ 35 Ft. of Head 8

GPM of Water @ 5 Ft. of Head 69

Handle yes

Height 12-1/8

Housing Cast Iron

Housing Material Cast iron

HP_ 4/10

Hz_ 60

Impeller Material Polypropylene

Impeller Material - Pumps Glass Filled Polypropylene

Includes Alarm Panel and Pump Switch

Input Phase AC 1

Item - Sump Pumps Elevator Sump Pump with Oil Sensor

Length 10-3/32

Manufacturers Warranty Length 1 yr

Max. Dia. Solids 3/4

Max. Diameter Solids 3/4 in

Max. Head 38.0 ft

Max. Head - Pumps 38 ft.

Max. Liquid Temp. 130 Degrees F

Min. Sump Pit Dia. 18 in

Minimum Water Depth 14 in

Motor RPM 3450

Motor Type Permanent Split Capacitor

Off Point 18-1/8 in

On Point 12 1/8 in

Overall Height 12 1/8 in

Package Quantity 1

Phase single

Pump Body Material Cast Iron

Pump HP 4/10

Pump RPM 3450

Rated Voltage 115V AC

RPM 3,450 RPM

Sensor Cord Length (Ft.) 20

Shaft Seal Carbon Ceramic

Shaft Seal Material - Pumps Carbon, Ceramic

Switch Actuation Sensor

Switch Electrical Connection Piggyback

Switch Type Piggyback

Switch Type - Pumps Piggyback Float

Thermal Protection Yes

Voltage 115V

Voltage - Pumps 120VAC

Width 10-3/32

Width at Widest Point 10 3/32 in
