Home / Beam Bracket, Rod Sz 5/8 In, 2 3/16 In L

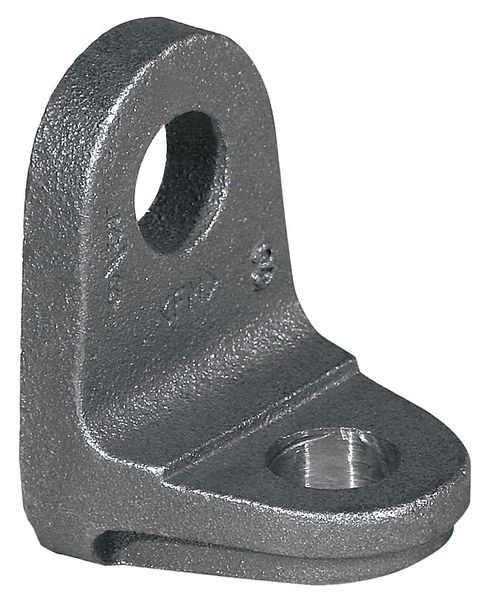

Beam Bracket, Rod Sz 5/8 In, 2 3/16 In L

Beam Bracket, Rod Sz 5/8 In, 2 3/16 In L

  • GENERIC
  • Raw Materials
  • Beam Bracket, Beam Clamp Type Side Beam Bracket, Clamp Length 2.19 in, Clamp Material Malleable Iron, Clamp Material Finish Not Applicable, Clamp Width 2.19 in, For Threaded Rod Size 5/8 in, Load Capacity 2,160 lb, Standards ANSI/MSS SP-69, Type 34, cUL Listed, A-A-1192A, Type 34, FM Approved, MSS SP-58, Type 34, UL Listed, WW-H-171-E, Type 35
Web Price
$21.92 / each
Qty

Product Details

Side Beam Bracket
2.19 in
Malleable Iron
Not Applicable
2.19 in
United States
For Attachment To Steel Or Wooden Beams
5/8 in
2 3/16 in
2,160 lb
Malleable Iron
760 w/Lag Screw, 2160 w/Bolt to Steel
Yes
1
5/8 in
ANSI/MSS SP-69, Type 34, cUL Listed, A-A-1192A, Type 34, FM Approved, MSS SP-58, Type 34, UL Listed, WW-H-171-E, Type 35
Iron Side
