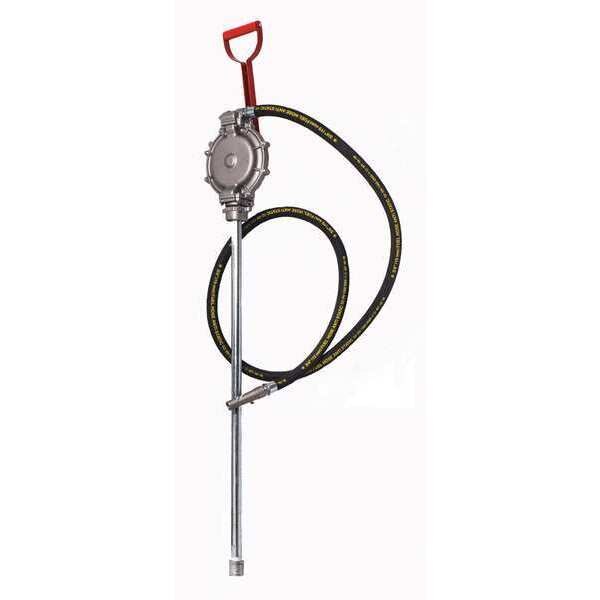

Hand Operated Drum Pump, 3 gpm, 159" H

Home / Hand Operated Drum Pump, 3 gpm, 159" H

Hand Operated Drum Pump, 3 gpm, 159" H

SKU
Brand GENERIC
Categories Pumps
Description Hand Operated Drum Pump, Max. Outlet Pressure 10 psi, Spout Connection Size 3/4 in, Self-Priming Yes, Metered No, Hose Length 96 in, Includes Discharge Hose Yes, Piston Material Buna-N, Features Check Valve, Double Diaphragm, Locking Handle, Seal Material Buna-N, For Use With Diesel Fuel, Fuel Oil, Gasoline, Light Petroleum Products, Motor Oil, Adapter Connection Type MNPT, For Container Type Drum, Hose Cover Material Nitrile, Includes Bung Adapter Yes, Includes Nozzle No, Includes Spout Yes
graingerSKU: 49XY74, mscSKU: , zoro_no: G5911206, mongo_id: 65bbe79b3aaddbd5a90a4790

Web Price

$374.61 / each

Qty

Product Details

Action Type Piston

Adapter Connection Type MNPT

Adapter Dia. 2

Adapter Material Aluminum

Adapter Type 2 NPT

Agency Compliance CE

Bung Connection Dia. 2 in

Compatible Chemicals Diesel Fuel, Ethylene Glycol, Gasoline, Glycerin, Hydraulic Oils (Petroleum), Kerosene, Methyl (Methanol), Stoddard Solvent (Mineral Spirits)

Country of Origin (subject to change) India

Diesel Exhaust Fluid Compatible No

Discharge Size FPT (In.) 3/4

Discharge Tube Length 96

Discharge Tube Outlet ID 3/4 in

Discharge Tube Outlet ID Size 3/4

Discharge Tube Outlet OD 1 in

Discharge Tube Outlet OD Size 1

Discharge Tubing Material Nitrile Buna-N Rubber

Features Check Valve, Double Diaphragm, Locking Handle

Food Grade No

For Container Size 55 gal

For Container Type Drum

For Media Type Diesel Fuel, Ethylene Glycol, Gasoline, Glycerin, Hydraulic Oil, Kerosene, Methanol, Stoddard Solvent

For Use With Diesel Fuel, Fuel Oil, Gasoline, Light Petroleum Products, Motor Oil

Gear Lube NT

GPM 3

Grease NT

Height 159

Height Above Container 20 1/2 in

Hose Cover Material Nitrile

Hose Inside Dia. 1/2 in

Hose Length 96 in

Hose Material Buna-N

Hose Outside Dia. 3/4 in

Hose Tube Material Nitrile

Housing Material Aluminum

Housing Material - Pumps Aluminum

Includes 2 in Bung, 4-Piece Rigid Intake Tube, Nozzle

Includes Bung Adapter Yes

Includes Discharge Hose Yes

Includes Nozzle No

Includes Spout Yes

Includes Suction Tube Yes

Inlet Size 3/4

Length 9

Manufacturers Warranty Length 1 yr.

Max. Flow GPM 3 gpm

Max. Flow Rate 16 oz per stroke

Max. Fluid Temp. 130 Degrees F

Max. Head 8 ft.

Max. Head - Pumps 12 ft

Max. Head Pressure 3 psi

Max. Liquid Temp. 130 Degrees F

Max. Outlet Pressure 10 psi

Max. Pressure 20 psi

Max. Viscosity 320 cps

Metered No

Min. Operating Temp. 40 Degrees F

Not Recommended Chemicals Hydrochloric/Muriatic Acid (100%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%)

Ounces per Stroke 16 oz.

Outlet Size 3/4

Package Quantity 1

Piston Material Buna-N

Power Source Hand Operated

Runs Dry Yes

Seal Material Buna-N

Self-Priming Yes

Spout Connection Size 3/4 in

Spout Material Buna-N

Suction Tube ID 7/8 in

Suction Tube Length 144 in
