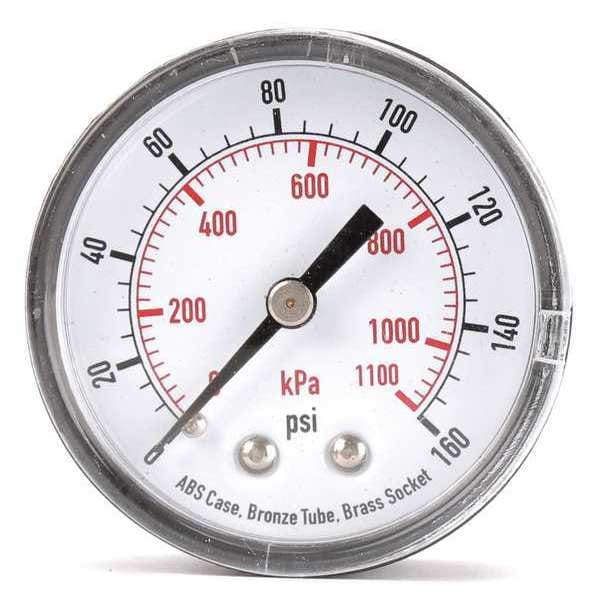

Pressure Gauge, Commercial, 0 to 160 psi, 2 in Dial, 1/4 in MNPT, Plas

Home / Pressure Gauge, Commercial, 0 to 160 psi, 2 in Dial, 1/4 in MNPT, Plastic, Black

Pressure Gauge, Commercial, 0 to 160 psi, 2 in Dial, 1/4 in MNPT, Plastic, Black

SKU
Brand Zoro Select
Categories
Description Commercial Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material ABS Plastic, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Black, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 160, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type General Purpose Dial Pressure Gauge
graingerSKU: , mscSKU: , zoro_no: G0045561, mongo_id: 65bbe8a222d7a989a9907a64

Web Price

$7.75 / each

Qty

Product Details

Accuracy +/-3-2-3%

Accuracy Scale Mid-Scale

Ambient Operating Temperature Range -40 Degrees to 150 Degrees F

Basic Gauge Case Material Plastic

Basic Gauge Lens Material Plastic

Basic Gauge Sensor Material Bronze

Basic Gauge Socket Material Brass

Basic Gauge Wetted Parts Brass / Bronze

Bezel Material Crimped Stainless Steel

Blowout Safety Back No

Calibration Certificate Included No

Case Color Black

Case Material - Gauge Plastic

Cleaned for Oxygen Service No

Color Black

Connection Location Center Back

Connection Size 1/4 in NPT

Country of Origin (subject to change) China

Dial Color White

Dial Size (In.) 2

Dry Dampening Feature None

Field Fillable No

For Use With Air and Noncorrosive Fluids Such as Water and Oil in Pumps, Filters, Compressors, and Regulators

Freeze Resistant Movement No

Gauge Accuracy +/-3-2-3%

Gauge Application Test

Gauge Case Color Black

Gauge Case Liquid None

Gauge Case Material ABS Plastic

Gauge Connection Location Center Back

Gauge Connection Size 1/4 in

Gauge Connection Type MNPT

Gauge Lens Material Acrylic

Gauge Nominal Dial Size 2 in

Gauge Panel Mountable No

Gauge Primary Range Smallest Graduation 5

Gauge Primary Range Units psi

Gauge Primary Range Values 0 to 160

Gauge Secondary Range Units kPa

Gauge Secondary Range Values 0 to 1100

Gauge Sensor Material Bronze

Gauge Socket Material Brass

Gauge Wetted Parts Brass / Bronze

Hazardous Location Rating Not Rated

Includes Calibration Certificate No

Includes Mounting Hardware No

Includes Vent Plug No

IP/NEMA Rating Not Rated

Lens Material Acrylic

Lens Material - Gauge Plastic

Liquid Filled No

Liquid-Filled Case No

Material ABS plastic

Max. Pressure (PSI) 160

Nominal Dial Size 2 in

Non-Sparking No

Operating Temp. Range -40 Degrees to 150 Degrees F

Package Quantity 1

Panel-Mountable No

Pressure and Vacuum Gauge Type Pressure Gauge

Pressure Gauge Type General Purpose Dial Pressure Gauge

Pressure Range Type Pressure

Primary Graduations 1, 2

Primary Pressure Range 0 to 160

Primary Scale Minor Graduations 5

Primary Scale Units psi

Process Connection Gender Male

Process Connection Location Center Back

Process Connection Size 1/4 in

Process Connection Type NPT

Promotional Badge Best Seller

Range 0 to 1100 kPa, 0 to 160 psi

Removable Bezel No

Scale Type Dual

Secondary Pressure Range 0 to 1,100

Secondary Range 0 to 1,100 kPa

Secondary Scale Units kPa

Sensor Material Bronze

Smallest Graduation 5 psi

Socket Material Brass

Vibration Resistance None
